Powersoft T304 – 4‑Channel Class‑D Amplifier with Integrated DSP & Dante (Optional)

The Powersoft T304 is a powerful four-channel amplifier designed for professional audio applications, combining high power output, integrated DSP, and flexible control connectivity—all in a single 1U rack unit.

---

Amplification & Power Output

• Four independent Class‑D channels, each delivering:
  • 750 W at 2 Ω
  • 750 W at 4 Ω
  • 750 W at 8 Ω
• Bridge mode enables 1,500 W per bridged pair at 4 Ω or 8 Ω
• Provides high voltage output (~145 V peak) and fast current capability (up to 50 A peak)

---

DSP and Signal Processing Features

• 96 kHz internal sampling with high-resolution converters for wideband audio and low distortion
• Built-in DSP per channel includes:
  • TruePower™, RMS voltage/current, and peak limiting
  • Raised-cosine, customizable FIR filters (up to ~42 ms), and parametric IIR filters
  • Crossover types including linear-phase FIR, Butterworth, Linkwitz‑Riley, and Bessel
  • Input delay (up to 2 seconds) and output delay (~100 ms) with fine timing control
  • Live impedance monitoring and Active DampingControl™

---

Control & Connectivity

• Four analog XLR inputs plus one AES3 digital input (with link-through)
• Optional Dante module permits network audio transport and control via Ethernet

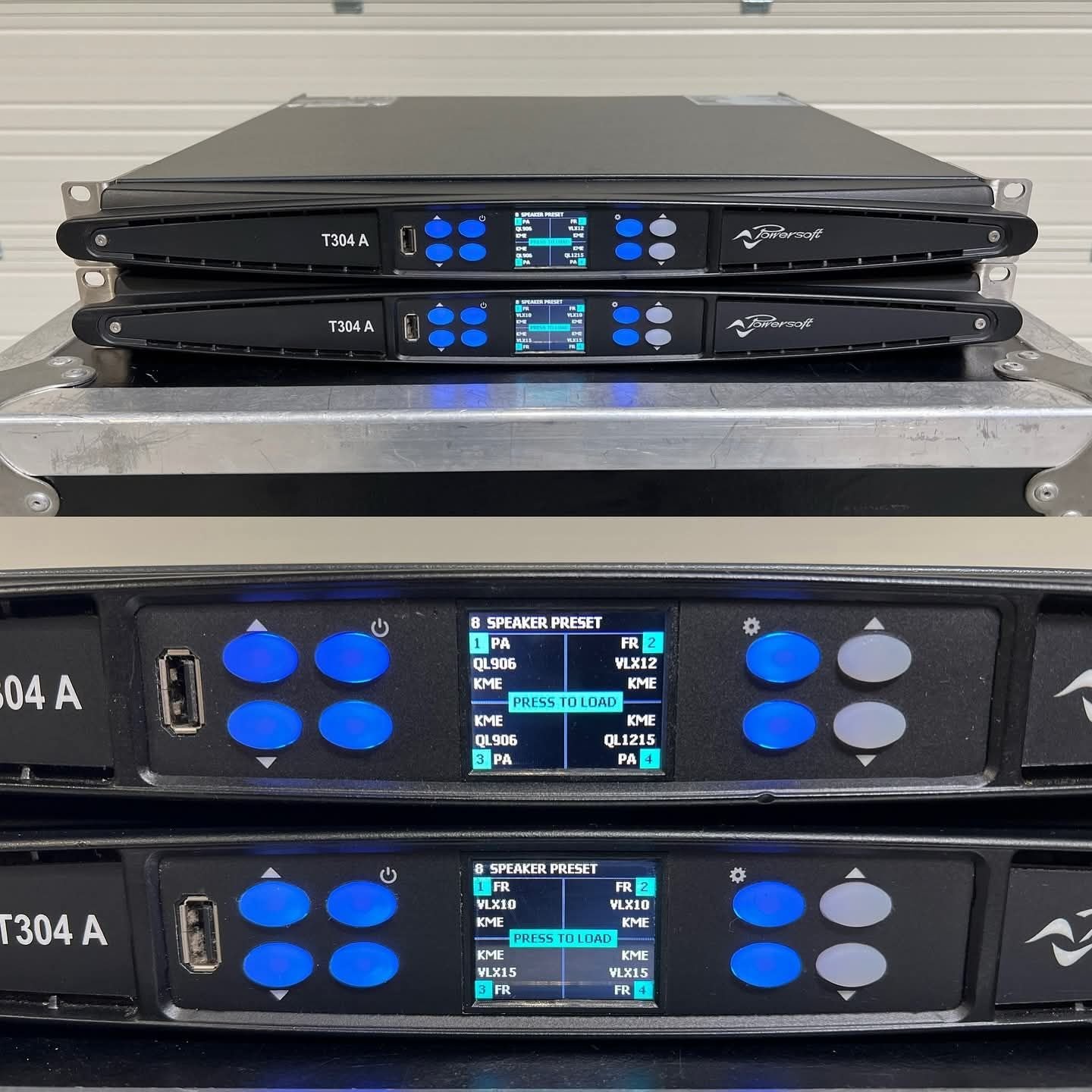

• Front panel includes a display and push-buttons to manage gain, mute, delay, and preset recall per output
• Alternative control through Ethernet web interface (via Wi‑Fi access point) or proprietary software

---

Protection, Power & Thermal Performance

• Universal regulated switch-mode power supply with power factor correction supports global voltage ranges (100–240 VAC, 50–60 Hz)
• Low idle power consumption (~32 W), with efficient thermal dissipation even under load
• Protects against overheating, short-circuit, DC faults, clipping, and low-impedance operation
• Intelligent variable-speed fans ensure cooling with minimal noise

---

Technical Specifications

Feature	Specification
Channels	4 (Class-D output)
Output Power (each ch)	750 W @ 2 Ω / 4 Ω / 8 Ω
Bridge Mode	1,500 W per bridged pair
Max Voltage/Current	~145 V peak / 50 A peak
Latency	~2.5 ms fixed
DSP Sampling Rate	96 kHz
FIR Filter Max Length	~42 ms
Frequency Response	20 Hz – 20 kHz (± 0.5 dB)
THD + N	< 0.05% typical (< 0.1% full range)
S/N Ratio	> 110 dB (A-weighted)
Input Sensitivity	~2.57 Vrms (gain ~32 dB)
Dimensions	1U rack, approx. 484 × 405 × 44 mm
Weight	~7–8 kg

---

Applications

• Compact amplifiers for medium-sized PA systems and stage monitoring
• Bi-amped or passive loudspeakers using high-voltage, shared-power architecture
• Networked audio systems employing Dante for streamlined cabling
• Scenarios requiring onboard DSP control, monitoring, and remote preset recall

---
