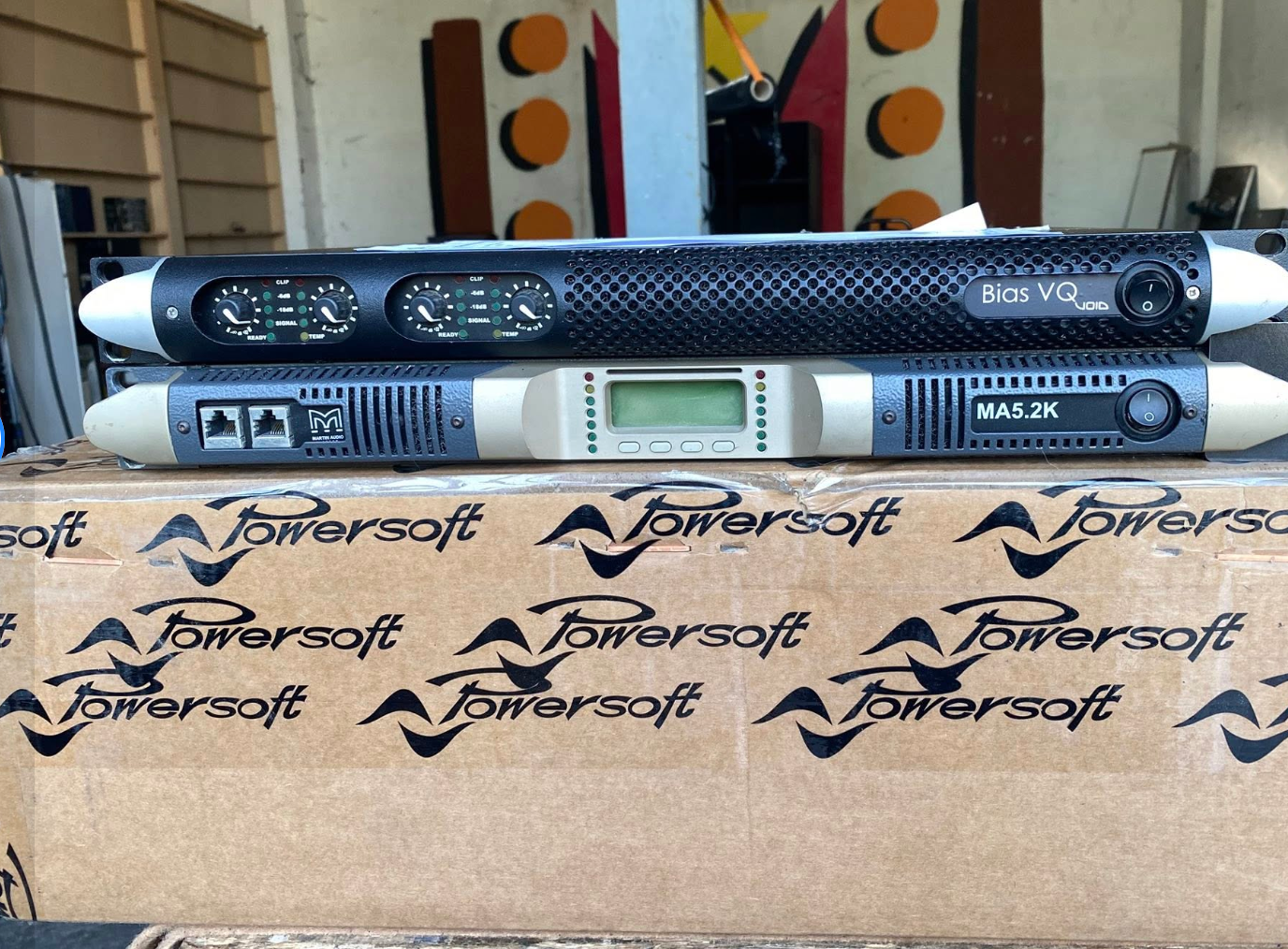

Void VQ (M50Q DSP ETH)

Void VQ (Powered by Powersoft M50Q DSP+ETH)

The Void VQ is a four-channel amplifier built on Powersoft’s M50Q DSP+ETH platform. It delivers professional-grade power and advanced processing in a compact 1U chassis, offering both analog and networked control for modern sound system applications. The VQ is part of Void’s Bias series and is designed to integrate seamlessly with Void loudspeaker systems.

Power and Amplification

• Four independent amplifier channels

• Delivers 750 watts per channel at 8 ohms

• Capable of bridged output for higher power configurations

• Class-D amplification ensures high efficiency with minimal heat generation

• Wide-band frequency response with fast transient response and clean low-end performance

DSP and Control

• Built-in DSP on each channel provides precise control over EQ, crossover points, delay, and limiters

• Each channel supports multiple biquad filters with adjustable parameters for both system tuning and speaker protection

• User-configurable limiters include peak and RMS limiting, with advanced features like frequency-dependent limiting

• Delay settings allow for time alignment of drivers and speaker zones

• Four internal presets can be recalled using rear-panel controls

• Full remote access and system monitoring available via Ethernet connection using supported control software

Protection and Reliability

• Integrated safety features protect both the amplifier and connected loudspeakers

• Protection includes short circuit, thermal overload, DC detection, clip limiting, and excessive current control

• Power factor correction in the power supply ensures reliable operation across a wide range of mains voltages

• Intelligent fan cooling adjusts speed based on internal temperature, keeping the amplifier quiet and efficient

Connectivity and Interface

• Balanced XLR inputs per channel with link-through outputs

• Output connections via professional-grade Speakon connectors

• Rear-panel Ethernet port for network control

• Preset recall button and indicator LEDs for quick operation

• Front panel includes level controls and signal indicators for each channel

Physical Specifications

Ideal Applications

• Mid-sized touring systems and rental inventory

• Club and venue installations using Void loudspeakers

• Bi-amped or passive speaker setups with flexible routing

• Systems requiring remote DSP tuning and control over Ethernet
