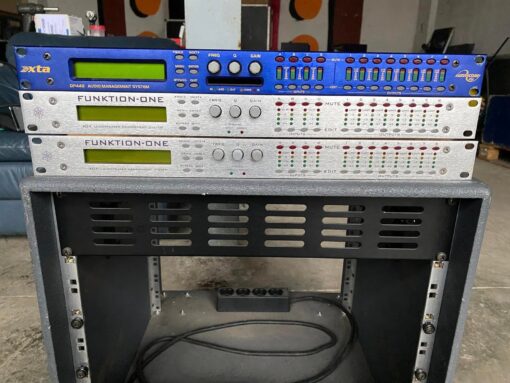

Funktion One XTA DP448 DSP 4 IN 8 OUT Processor

Funktion‑One XO4 DSP – 4 Input / 8 Output Audio Management Processor

The XO4 is a high-performance digital audio processor tailored for Funktion-One systems, manufactured to precise audio engineering standards. It offers four balanced inputs and eight balanced outputs with full matrix routing, built-in DSP, and network control compatibility.

---

Audio Processing & Performance

• Four balanced input channels matched with eight balanced outputs
• Native 96 kHz DSP sampling for ultra-wide bandwidth (extending beyond 30 kHz)
• Low-noise, high-resolution converters with very low distortion (< 0.02% at typical operating levels)
• High dynamic range and precision crossover alignment

---

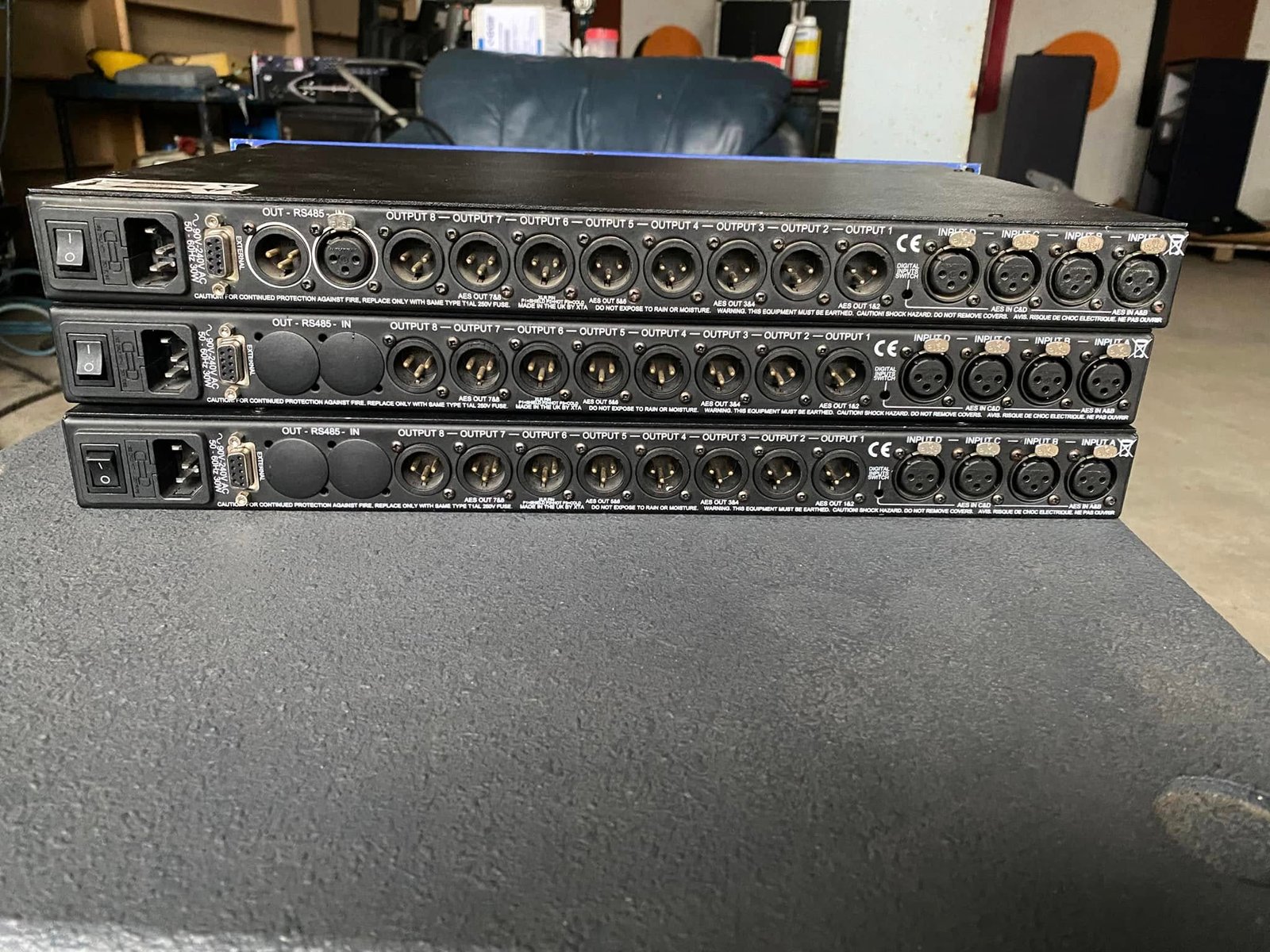

Input & Output Capabilities

• Fully flexible input/output matrix: route any input to any combination of outputs
• Input DSP features: graphic and parametric EQ, delay, gain control, phase adjustment
• Output DSP features: crossovers (up to 48 dB/octave), parametric filters, delay, polarity, mute/gain control
• Delay resolution down to microseconds for precision timing alignment

---

Control & Networking

• Compatible with XTA AudioCore control software (via RS-485 or network with XO4A variant)
• Allows remote realtime configuration of EQ, routing, limiters, delay, and presets
• Manage up to 32 units remotely when using networked versions, allowing scalable system control
• Front panel display and low-profile controls provide local editing and navigation

---

Protection & Reliability

• Per-channel limiting options and global look-ahead protection for speaker safety
• Secure password provisioning and scene memory with preset recall options
• Internal clock for scheduled event recall (XO4A variant offers enhanced control communication)

---

Physical & Power Details

Feature	Specification
Rack Size	1U rackmount (standard 19″)
Depth	Approx. 305 mm
Power Input	Auto-ranging PSU for global voltages
Power Consumption	Moderate (low in idle)
Weight	Lightweight, easy to rack-mount

---

Best-Suited Applications

• Touring and fixed installations using Funktion-One loudspeaker systems
• Multi-way system alignment, driven from line-arrays or stage monitoring setups
• Scalable deployments where multiple processors operate under centralized control
• Systems requiring precise delay, EQ, crossover, and protection tuning
